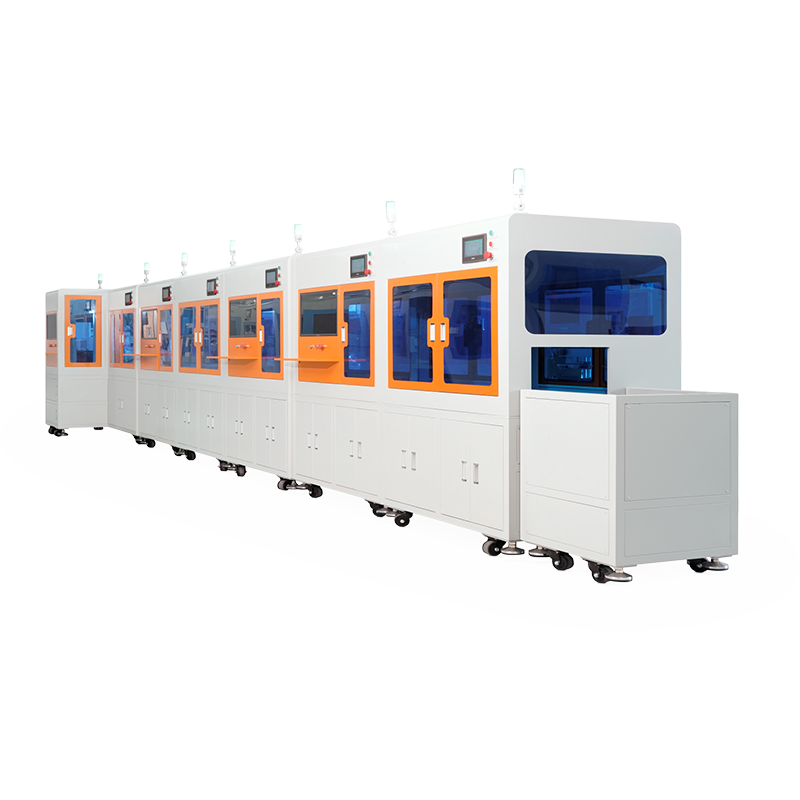

Automated production of energy storage battery packs
2025-11-20 16:59:57
Product features：
Main function：
Used for power/energy storage battery packs automated production
Suitable for mass production, with good product consistency and stable quality
Customizable battery cell scan code function, database storage,bar code traceability data generation
一、Main function
Used for power/energy storage battery packs automated production
Suitable for mass production, with good product consistency and stable quality
Customizable battery cell scan code function, database storage,bar codetraceability data generation
二、BT-CCD01Positive and negative electrode detector for battery cell parameters
Device function | For the cylindnical cell,the positive and negative electrode data are collected by camera,and the positive and negative electrode number and position infomation are compared with the sample,the result (NG or OK)is quickly analyzed,and the position of NG is marked,in order to confim the positive and negative electrodes of the battery before entering spot welding,and prevent the bad caused by the wrong position of the positive and negative electrodes. | Power | AC220V 0.6KW 50/60HZ | ||||
Adaptive cell range | cylindrical cel¹4430/14500/18650/21700 | ||||||
Detection speed | 400*300mm,Custom-made for larger sizes | ||||||
Adaptive detection range | 100PCS/1.5s | ||||||
Testing accuracy | he core is not deformed orrusty,100% |
三、Parameters of Automatic Spot Welding Machine
Power | AC220V 50/60HZ 4KW | Maximum stroke | Xaxis:420mm Yaxis:260mm | ||||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a filter device to ensure that the flow of water-free impurities. | ||||||
Suitable for nickel sheet thickness | (0.15-0.2MM thickness nickel sheet needs to be slotted) | ||||||
Standard spot wekcing power | BT+1000A Transistor sot weloing power supply,quantity2 | ||||||
Weling output curent | Max 10000A | Bumpwelding nickel sheet 0.21-0.4MM | |||||
Spot welding data | CAD data import/dot matrix data mport/manual input | ||||||
Suitable for spot welding pins | Imported diameter 1.7*100MM(spot welding) | ||||||
| Run power | Servo electnic | ||||||
Suitable for cells | 18650 and 21700 cells compatible | Imported diameter 4-4*6 flat-head welding needle (for bump welding) | |||||
Droducfivity | About 3000PCS-3500PCS cels/hour |
